ANBEN / DURA-K FIRE BOARD

Cable tray fire-protection enclosure

A board enclosure around a steel cable tray, with suspension supports, joint-cover strips and rock-wool insulation.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeEI60 / EI90 / EI120 / EI240
Catalogue test referenceBS 476 Part 20

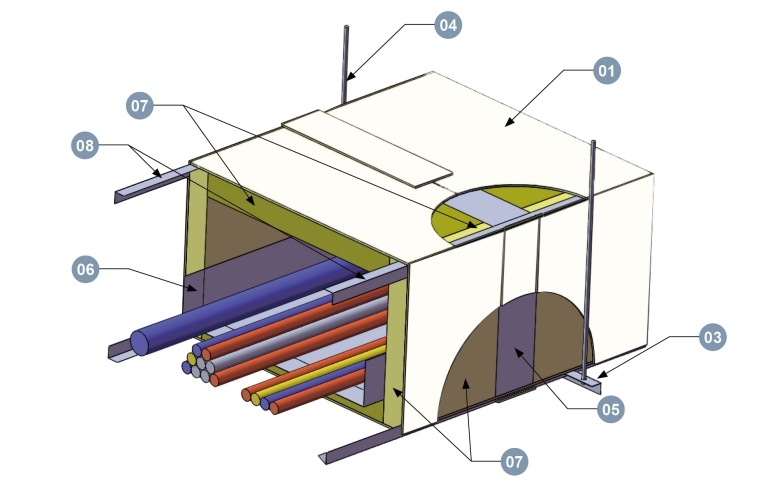

Illustrated construction

The catalogue identifies the illustrated 9 mm board enclosure as a 240-minute arrangement. Steel channels, angles and suspension rods support the cable tray; rock wool and board cover strips complete the enclosure.

Cable tray fire-protection enclosure
Board systems catalogue, p. 7.View full-size drawing ↗

Components in the drawing

01
DURA-K FIRE BOARD
02
Joint-cover strip (not separately keyed)
03
Steel C-channel or angle support
04
Steel suspension rod
05
Steel edge channel
06
Steel cable tray
07
Rock wool
08
Steel angle

System selection

Match board layers, insulation, support spacing, joints and penetrations to the corresponding report. The enclosure rating alone does not demonstrate four hours of continued electrical operation.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.
