ANBEN / DURA-K FIRE BOARD

Fire-resistant suspended ceiling

Suspended steel framing, board lining and rock wool. The illustrated 240-minute ceiling uses two layers of 12 mm board.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeEI60 / EI90 / EI120 / EI240
Catalogue test referenceBS EN 1364-2

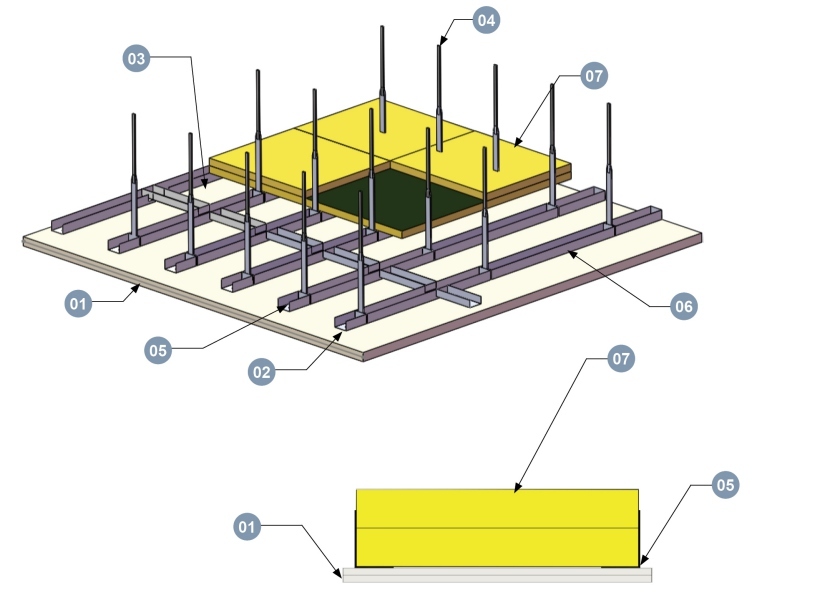

Illustrated construction

The catalogue illustrates a 240-minute suspended ceiling with two layers of 12 mm DURA-K board, reinforced steel sections and high-density rock wool. Suspension rods, perimeter supports and joint-cover strips form part of the assembly.

Fire-resistant suspended ceiling
Board systems catalogue, p. 10.View full-size drawing ↗

Components in the drawing

01
DURA-K FIRE BOARD
02
Steel C-channel
03
Furring / perimeter channel
04
Steel suspension rod
05
Steel angle
06
Board joint-cover strip
07
Self-tapping screw (not separately keyed)
08
Rock wool

System selection

Confirm fire-exposure direction and the tested suspension, insulation and board layers. Access panels, luminaires and service penetrations need compatible fire-resistance details.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.

Project enquiry →Downloads ↓
