ANBEN / DURA-K FIRE BOARD

Fire-resistant framed partition

Steel-framed board partition with rock-wool infill. The illustrated 240-minute arrangement uses two layers of 9 mm board.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeEI60 / EI90 / EI120 / EI240
Catalogue test referenceBS EN 1364-1

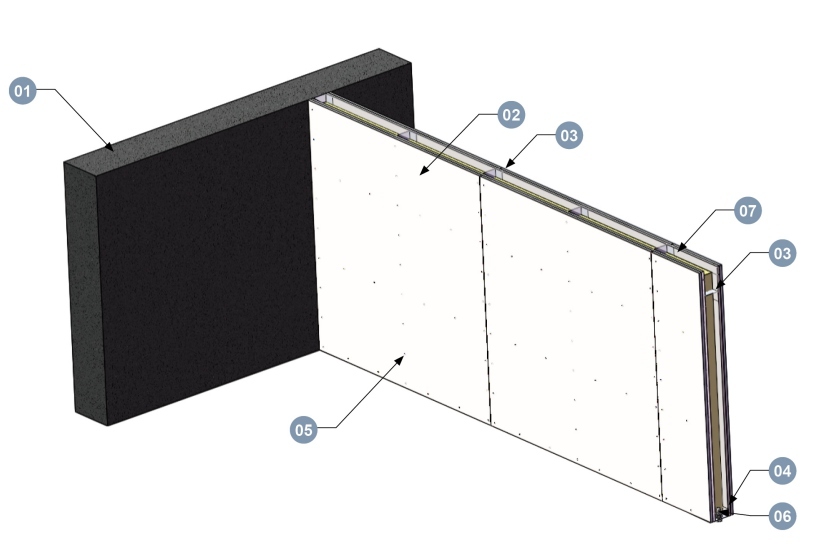

Illustrated construction

The illustrated 240-minute partition combines two layers of 9 mm DURA-K board with reinforced steel studs and high-density rock wool for fire-compartment separation.

Fire-resistant framed partition
Board systems catalogue, p. 9.View full-size drawing ↗

Components in the drawing

01
Supporting wall
02
DURA-K FIRE BOARD
03
Steel stud
04
Steel head and base perimeter channel
05
M4 self-tapping screw
06
M6 anchor
07
Rock wool

System selection

Confirm layers on each face, stud sizes and spacing, insulation, wall height, joints and fixing centres against the relevant report. The drawing is one specified arrangement.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.
