ANBEN / DURA-K FIRE BOARD

Insulated fire and smoke barrier

Board, rock wool and steel framing for integrity and insulation. The illustrated 60-minute arrangement uses 9 mm boards.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeEI60 / EI90 / EI120 / EI240
Catalogue test referenceBS EN 1364-1

Illustrated construction

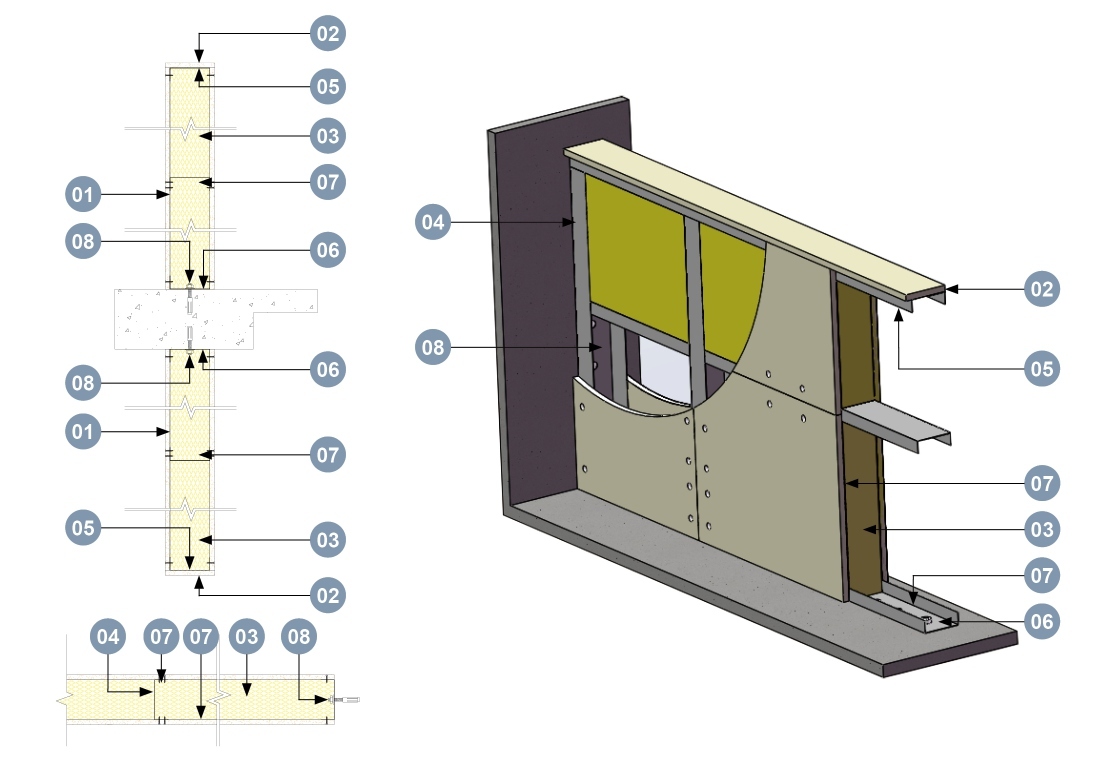

The illustrated 60-minute arrangement combines 9 mm DURA-K boards with rock-wool infill, galvanised steel studs, head and base U-channels and perimeter cover strips.

Insulated fire and smoke barrier
Board systems catalogue, p. 6.View full-size drawing ↗

Components in the drawing

01
Main fire-protection board
02
Perimeter board cover strip
03
Rock-wool insulation
04
Vertical galvanised steel stud
05 / 06
Head and base steel U-channels
07
M4 self-tapping screw
08
M6 steel anchor

System selection

The 9 mm illustration is identified as a 60-minute configuration. EI90, EI120 and EI240 require their own documented build-ups. Smoke-leakage performance needs separate evidence.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.
