ANBEN / DURA-K FIRE BOARD

Integrity-only fire and smoke barrier

Single-sided 9 mm board lining on galvanised steel studs and channels. The catalogue lists E30 and E60 options.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeE30 / E60
Catalogue test referenceBS 476 Part 20

Illustrated construction

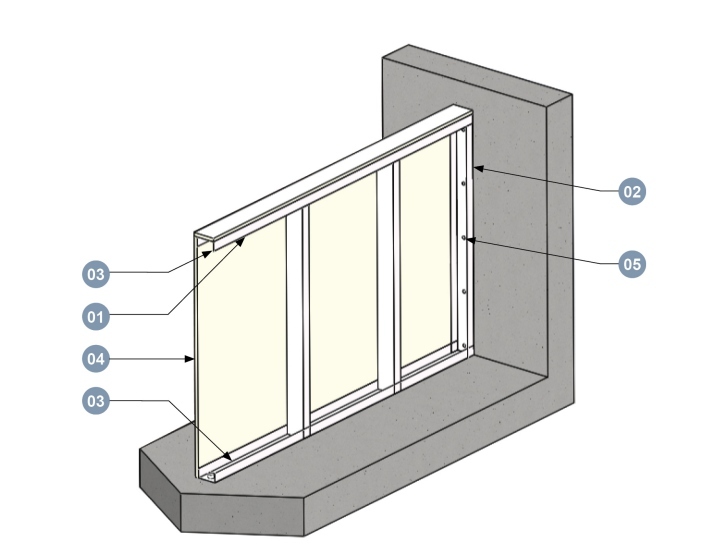

A single-sided 9 mm DURA-K lining is fixed to vertical galvanised steel studs, with head and base channels, self-tapping screws and steel anchors.

Integrity-only fire and smoke barrier
Board systems catalogue, p. 5.View full-size drawing ↗

Components in the drawing

01
DURA-K FIRE BOARD
02
Vertical galvanised steel stud
03
Galvanised steel head channel
04
Galvanised steel base channel
05
Self-tapping screw
06
M6 steel anchor (not separately keyed)

System selection

E30 / E60 describes integrity-only protection. It does not establish an insulation or smoke-leakage classification; permitted dimensions and exposure direction follow the supporting report.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.
