Solid partition: jointed & single-panel

Two solid-partition arrangements using 32 mm board, perimeter steel angles and mechanical fixings; both illustrations are identified as 60-minute systems.

← Back to board systems

Technical performance

ItemCatalogue value / option
Catalogue system rangeEI60 / EI90 / EI120 / EI240
Catalogue test referenceBS EN 1364-1

Illustrated construction

Both illustrated arrangements use 32 mm DURA-K board restrained by steel angles and mechanical fixings between supporting walls. The jointed arrangement includes sealed board joints. The catalogue identifies both as 60-minute configurations.

Jointed arrangement · 32 mm board
Board systems catalogue, p. 11.View full-size drawing ↗

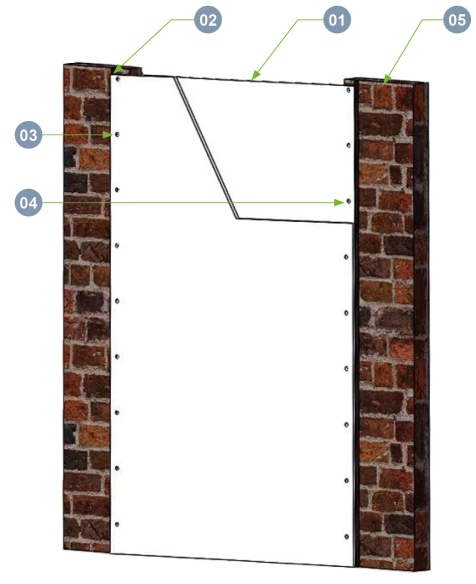

Single-panel arrangement · 32 mm board
Board systems catalogue, p. 12.View full-size drawing ↗

Components in the drawing

01
DURA-K FIRE BOARD
02
Steel angle
03
M4 self-tapping screw
04
M6 anchor
05
Supporting wall
06
Sealant (jointed arrangement)

System selection

The 32 mm drawings are 60-minute arrangements, not a universal EI240 detail. Shown dimensions are illustrative, not approved maximum sizes. Higher ratings require their own documented construction.

System selection

E denotes integrity; EI denotes integrity and insulation. Ratings apply to the complete documented assembly. Confirm the board layers, steelwork, insulation, fixings, joints and supporting construction in the corresponding report.
