Butt-jointed fire-resistant glazing

MINGAN / FIRE-RESISTANT GLAZING SYSTEMS

Butt-jointed fire-resistant glazing

Frameless fire-rated butt-joint systems reduce intermediate framing for a more continuous transparent boundary. Frameless describes the visual approach; perimeter support, glass joints and any doors still require complete assembly verification.

CATALOGUE TECHNICAL INFORMATIONEI30 / EI60 / EI90 / EI120

Fixed fire-resistant glazing with reduced intermediate framing.

Ratings refer to the respective documented configurations.

Technical performance

ItemCatalogue value / option
Listed fire resistanceEI30 / EI60 / EI90 / EI120
ConfigurationsInsulated, indoor or supported outdoor configurations; integrated doors and frameless fixed glazing.
Outdoor useUse exterior-rated, UV-resistant glazing matched to the selected system.
Finish optionsPowder coating, fluorocarbon coating, brushed or mirror-polished stainless steel, aluminium panels and titanium-coloured finishes, depending on the system.

Catalogue values apply to the listed configurations. Confirm the complete assembly, dimensions, orientation, supports, fixings, seals and hardware against the applicable test or classification documents.

Butt-joint system elevation and sections

Butt-joint system elevation and sections
Chinese product handbook 2025, p. 40.View full-size drawing ↗
•
Galvanised steel tube
•
Stainless steel cladding
•
Fire-resistant board
•
Fire-resistant strips
•
Glazing tapes
•
35 mm and 25 mm fire-resistant glass components shown in the source

Joint width, sealant, glass edge support and panel size follow the corresponding tested or assessed construction.

Drawings are catalogue construction illustrations. Their dimensions and components describe the shown arrangement; project installation follows the approved system detail.

Typical applications

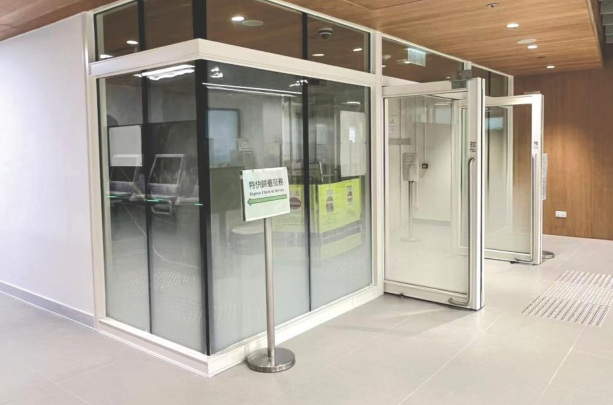

Transparent separation in exhibition centres, sports venues, shopping centres, offices, halls and circulation spaces.

Options to discuss

Discuss fixed-panel arrangement, joint layout and combinations with doors. Exterior use requires separate confirmation of system scope and exposure suitability.

Choosing the right system

Butt-joint and conventionally framed partitions are distinct systems. Removing framing or substituting joint materials does not convert one into the other.

Information for your project

Overall height, panels and joint positions; perimeter support; doors; exposure; fire and other performance requirements.
