Suspended glass smoke barriers

MINGAN / FIRE-RESISTANT GLAZING SYSTEMS

Suspended glass smoke barriers

Suspended smoke-barrier glass forms transparent boundaries within a designed smoke-control arrangement, helping define smoke reservoirs while retaining views. Glazing and supports are coordinated with the smoke-management design.

CATALOGUE TECHNICAL INFORMATIONE60 (catalogue table)

Straight or curved suspended glass baffles for smoke zoning.

Ratings refer to the respective documented configurations.

Technical performance

ItemCatalogue value / option
Listed fire resistanceE60 (table)
ConfigurationsFlat and curved hanging panels with steel support and bracing.

Catalogue values apply to the listed configurations. Confirm the complete assembly, dimensions, orientation, supports, fixings, seals and hardware against the applicable test or classification documents.

Suspended support and ceiling coordination

Suspended support and ceiling coordination
Chinese product handbook 2025, p. 34.View full-size drawing ↗
•
Steel hangers fixed to the supporting construction
•
Steel diagonal bracing
•
Ceiling framework
•
Monolithic fire-resistant glass

Straight, curved and edge-fixing forms

Straight, curved and edge-fixing forms
Chinese product handbook 2025, p. 34.View full-size drawing ↗

Catalogue specifications

Nominal build-up (mm)Listed fire resistanceWeight (kg/m²)
6E6015
6 + 1.52 + 6E6030
8E6020
8 + 1.2 + 8E6040

The 1.2 mm interlayer value is reproduced as printed and should be confirmed against current manufacturer data. E60 does not itself establish smoke-leakage performance.

Application and cited standard

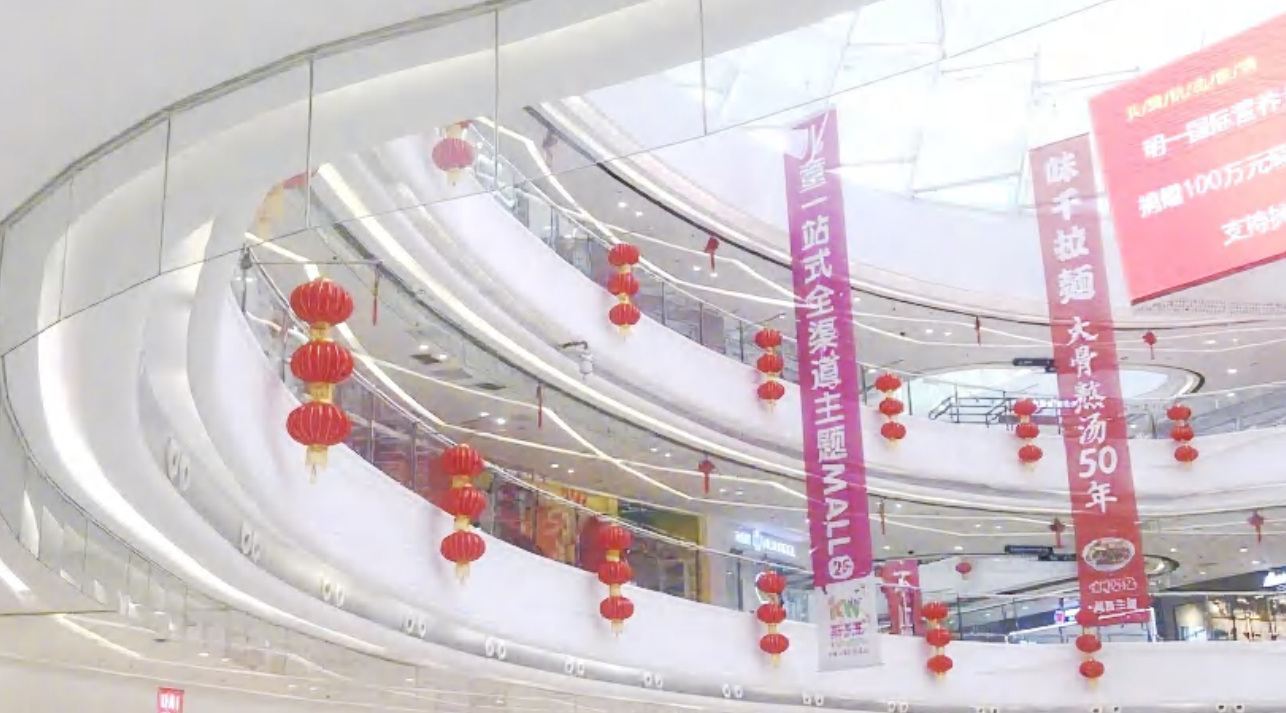

Shopping centres, airports, railway and metro facilities, and atria. Suspended barriers help form smoke reservoirs as part of a designed smoke-control system. Source reference: BS 476 Part 22:1987.

Protect glass edges, corners and finishes from impact and abrasion. Store upright at a slight inclination on non-abrasive racks in dry conditions, following the selected system’s handling and installation instructions.

Drawings are catalogue construction illustrations. Their dimensions and components describe the shown arrangement; project installation follows the approved system detail.

Typical applications

Shopping centres, airports, rail and metro facilities, and atria where smoke reservoirs form part of the building design.

Options to discuss

Discuss straight or curved layouts, suspension locations, perimeter interfaces and maintenance access.

Choosing the right system

A smoke barrier serves a different purpose from a full fire-rated partition. Documentation for a pane does not replace verification of the smoke-barrier and extraction design.

Information for your project

Smoke-reservoir and extraction design; barrier layout and drop; support conditions; panels; required performance and maintenance access.
