Typical applications

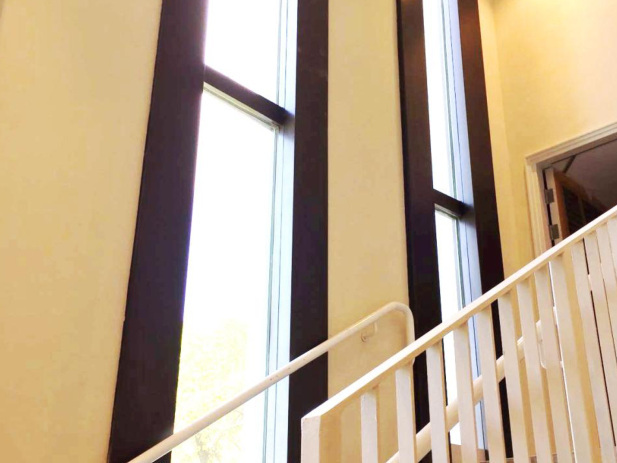

Fixed windows in façades, stairwells and compartment boundaries; transparent fixed enclosures in public and commercial buildings.
MINGAN / FIRE-RATED DOORS & WINDOWS
Fire-rated glazed windows
Fire-rated glass windows are fixed glazed systems for fire-separation boundaries. They retain daylight and views while the performance of the complete window assembly is checked against project requirements.

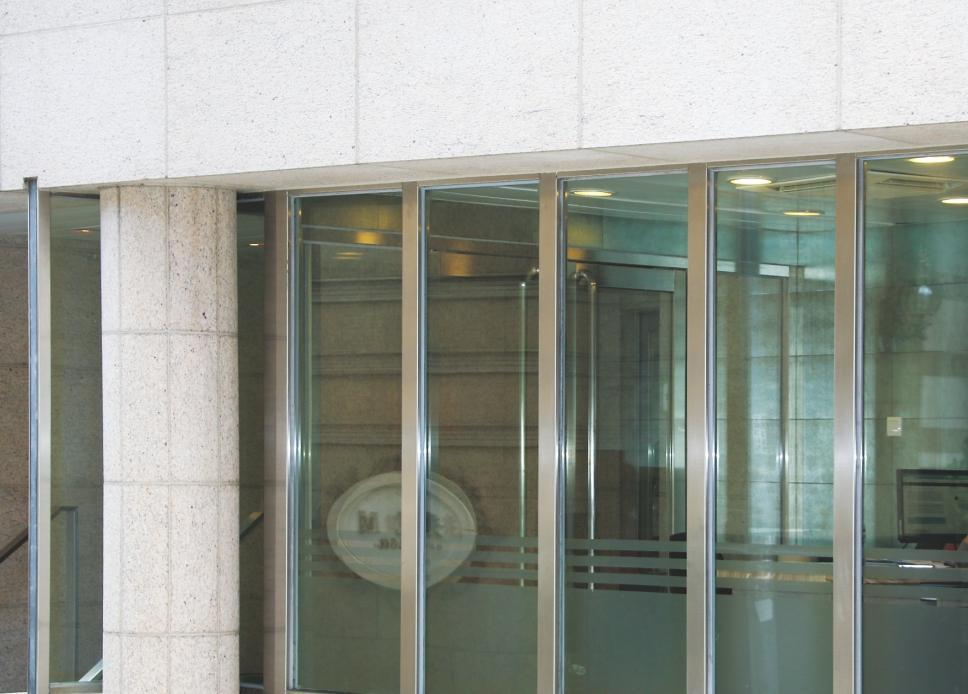

Fixed exterior fire-window application from the 2025 Mingan catalogue (Chinese edition, printed p. 24).
Fixed glazing with a steel frame and compatible perimeter fire seals.
Ratings refer to the respective documented configurations.
Technical performance
| Item | Catalogue value / option |
|---|---|
| Listed fire resistance | EI30 / EI60 / EI90 / EI120 |
| Configurations | Insulated fixed glazing; exterior configurations as supported by the system. |
| Outdoor use | Use exterior-rated, UV-resistant glazing matched to the selected system. |
| Finish options | Powder coating, fluorocarbon coating, brushed or mirror-polished stainless steel, aluminium panels and titanium-coloured finishes, depending on the system. |
Catalogue values apply to the listed configurations. Confirm the complete assembly, dimensions, orientation, supports, fixings, seals and hardware against the applicable test or classification documents.

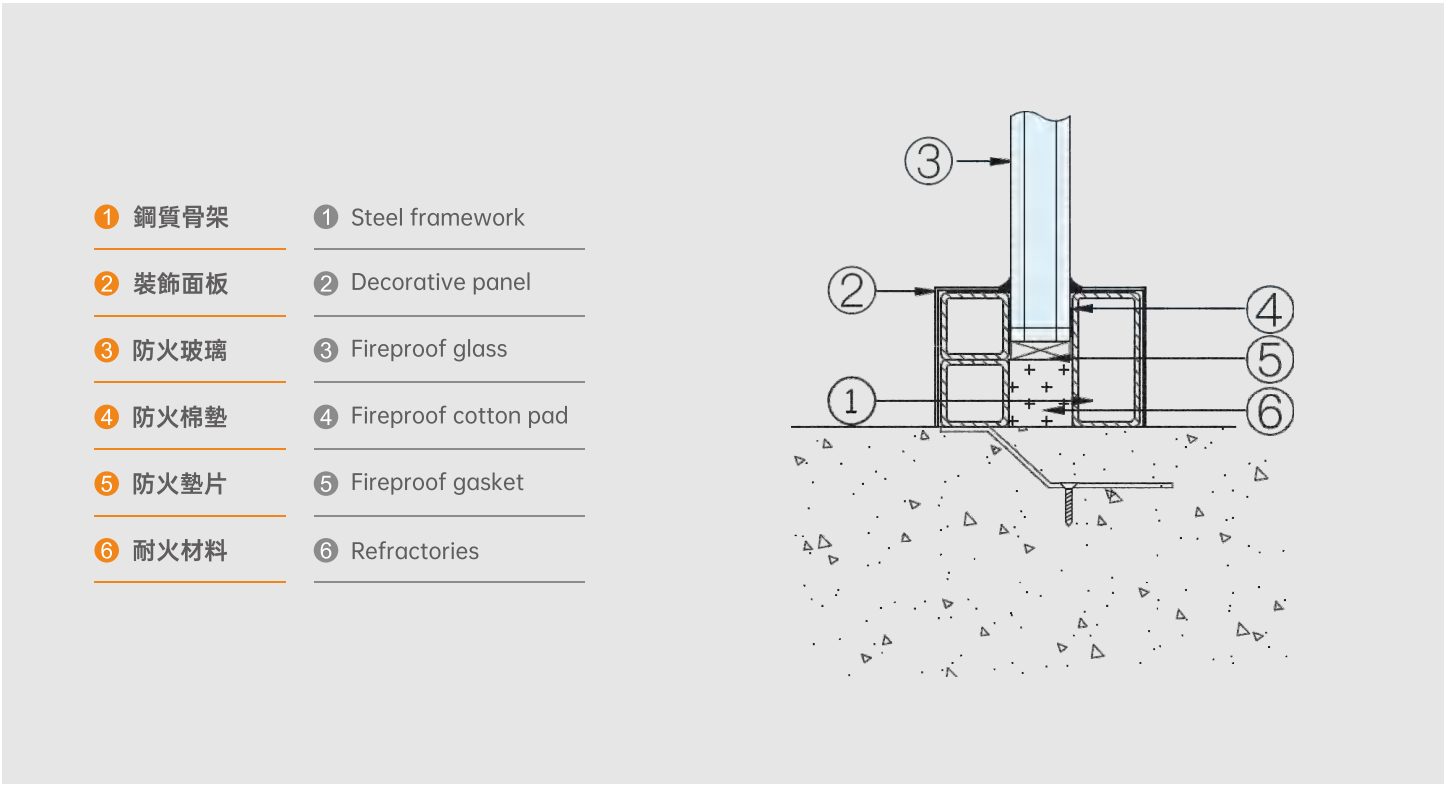

Exterior fire-rated window section
- 1
- Steel framework
- 2
- Decorative cladding
- 3
- Fire-resistant glass
- 4
- Fire-resistant fibre pad
- 5
- Fire-resistant glazing gasket
- 6
- Refractory material
Application and care
External façades, stairwell windows and fire-compartment boundaries. Glass, framing and perimeter seals are selected as one assembly to retain daylight and visibility while meeting the stated fire performance.
Protect glass edges, corners and finishes from impact and abrasion. Store upright at a slight inclination on non-abrasive racks in dry conditions, following the selected system’s handling and installation instructions.
Drawings are catalogue construction illustrations. Their dimensions and components describe the shown arrangement; project installation follows the approved system detail.
Options to discuss
Discuss panel arrangement and coated or metal finishes. Exterior windows also require assessment of UV exposure, rain, wind loading and weather conditions.
Choosing the right system
A fixed fire window does not provide access. A curtain wall has a different façade and structural coordination scope and needs its own assembly verification.
Information for your project
Window location and layout; opening dimensions; interior or exterior exposure; fire requirements; façade interfaces and other envelope performance needs.
